CES-1820K-GI
8-Port 1000 SFP + 2 10/100/1000TX RJ-45 port
Rugged 全光纖網路交換機
NT$7,980
全光纖
1000M
1年保固
特 點
-
2 埠GIGA超高速乙太網路RJ-45埠口
-
8埠 GIGA 光纖SFP 埠口
-
輸入電壓範圍110V ~240 VAC
-
操作溫度 -10°C to 55°C
-
符合安全規範
-
隨機附30W工業電源
-
適用安防產業，一年保固
產品說明
CES-1820-Gi 是新一代 10 埠乙太網路光纖交換器，擁有容納強大 L2 交換地址 8K、支援 20G 背板頻寬，並支援 IEEE 802.3/802.3u/802.3x 和 10/100/1000M、全/半雙工、MDI/MDI-X自動偵測，可真實達到隨插即用，為使用者帶來快速且經濟實惠經由光纖或銅軸線纜傳輸的乙太網路傳輸服務。
擁有 8 埠 1G SFP 以及 2 埠 10M/100M/1G RJ45 接口，高HW效能與彈性化擴充，高埠數 GbE SFP 光纖接口特別適用於工業區、大樓自動化、社區寬頻建置、中小型企業光纖網路。
CES-1820-Gi支援鋼製外殼及強固型設計，可支援 -10°C to 55°C的操作溫度，可搭配 CTI-1000-SM10 系列光電轉換器使用，兼顧耐用與實用的網路設計。
技術規格
| IEEE Standards | EEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX IEEE802.3z Gigabit Fiber IEEE802.3x Flow Control and Back Pressure |
|---|---|
| Switch Properties | Back-plane (Switching Fabric): 20 Gbps Packet throughput ability (Full-Duplex): 1488096pps @64bytes |
| Transfer Rate | 14,881pps for Ethernet port 148,810pps for Fast Ethernet port 148,8100pps for Giga Ethernet port |
| Connectors | 1000 FX: 8 x 1000 SFP 10/100/1000M TX: 2 x RJ-45 with auto MDI/MDI-X function |
| MAC Address | 8K MAC addresses |
| Processing | Store-and-Forward |
| Network Cable | 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m) |
| Fiber Optical | Distance: Multi mode: 0 to 5 km, 1300 nm (50/125 μm, 800 MHz*km) 0 to 4 km, 1300 nm (62.5/125 μm, 500 MHz*km) Single mode: 0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km)) 0 to 80 km, 1550 nm (9/125 μm, 19 PS/(nm*km)) Min. TX Output: Multi mode: -20 dBm Single mode: 0 to 40 km, -5 dBm; 0 to 80 km, -5 dBm Max. TX Output: Multi mode: -14 dBm Single mode: 0 to 40 km, 0 dBm; 0 to 80 km, 0 dBm Sensitivity: -36 to -32 dBm(SM); -34 to -30(MM) |
| Protocol | CSMA/CD |
| Case Dimension | Metal case; 32mm(W)x105mm(D)x225mm(H) |
| Weight | 1200g |
| LED | Power Indicator : Green LED x 1 10/100/1000Base-T(X) RJ45 port indicator : Green LED x2 Amber x2 1000Base-SX/LX Fiber port indicator : Green LED x8 |
| Power Supply | 12 VDC input with terminal block |
| Consumption | 9.76 Watts (Full load: Only Ethernet) |
| Overload Current | NC |
| Reserve Polarity | NC |
| Operating Humidity | 5% to 95% Non-condensing |
| Operating Temperature |
-10°C~55°C |
| Storage Temperature |
-20°C~70°C |
| Certification | FCC CE |
| Warranty | 1 years |

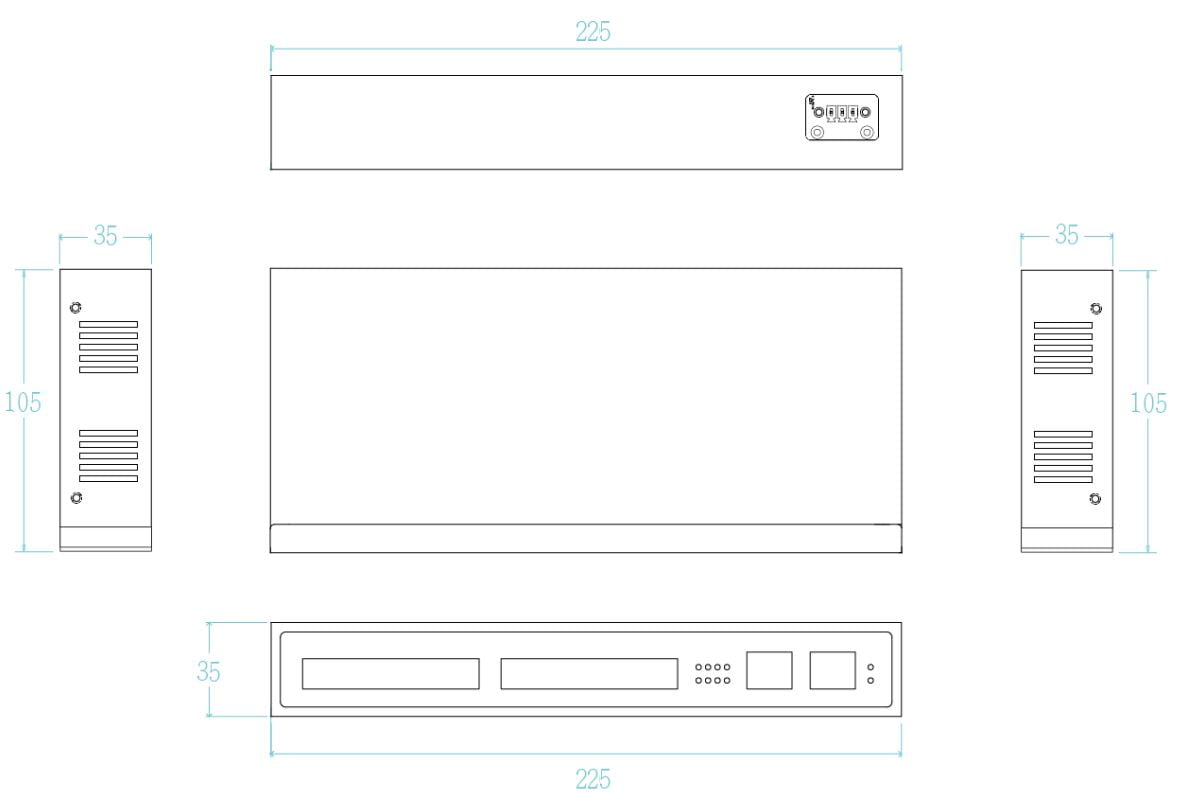

尺寸圖 (單位:mm)
CES-1820-Gi
